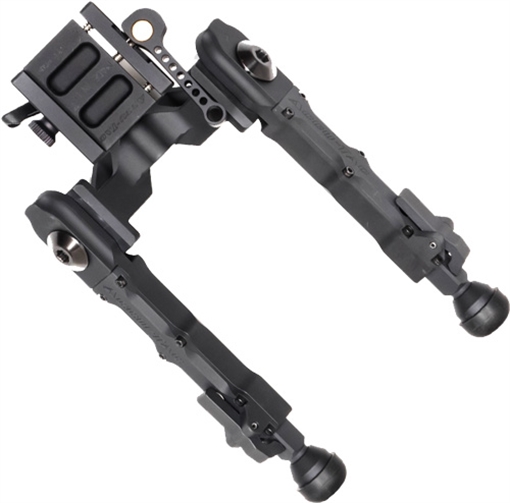

ACCU-TAC WB-4 BIPODS
The WB-4 Wide Body bipod was designed to provide desired height and extra stability. This bipod style is ideal for long-range, extreme long-range, bench-rest, and for the airsoft platform. The wide, lowered center allows the rifle to sit between the legs which supports accuracy and helps reduce movement from recoil. This is only a suggested use, this model is not exclusive for these applications.
To engage or adjust leg position, simply pull the spring-loaded leg downward to move each leg independently. Leg position can be deployed to 90° or 45°, locking securely into 4 positions. Please keep in mind the cant adjustment lever can be repositioned, DO NOT use a tool to tighten the canting tension. All are black with anodized finish.
Choose:
Quick Detach for Picatinny rail mount that is simple, quick, and very secure, it attaches to a 1913 Picatinny rail and mounts in seconds without the need to use extra tools for tightening.
Quick Detach for Arca Swiss or Arca Style rail that mounts in seconds without the need to use extra tools for tightening.
Model WBB-0400 Quick Detach Picatinny Specs:
- Min. Height (Legs at 45°) 4.5"" / 114.3 mm
- Min. Height (Legs at 90°) 6.0"" / 152.4 mm
- Max. Height (Legs at 90°) 7.5” / 190.5 mm
- Min. Stance (Legs at 45°) 10.0” / 254 mm
- Max. Stance (Legs at 90°) 14.0"" / 355.6 mm
- Closed Position Width 5.0"" / 127 mm
- Closed Position Length 7.5” / 190 mm
- Weight 22.08 oz
Model WBASQD-0400 Arca Speck Quick Detach Specs:
- Min. Height (Legs at 45°) 4.75"" / 120.65 mm
- Min. Height (Legs at 90°) 6.25"" / 158.75 mm
- Max. Height (Legs at 90°) 7.75” / 196.85 mm
- Min. Stance (Legs at 45°) 10.0” / 254 mm
- Max. Stance (Legs at 90°) 14.0"" / 355.6 mm
- Closed Position Width 5.0"" / 127 mm
- Closed Position Length 7.5” / 190 mm
- Weight 22.08 oz
Manufacturer Part Number: WBASQD-0400
