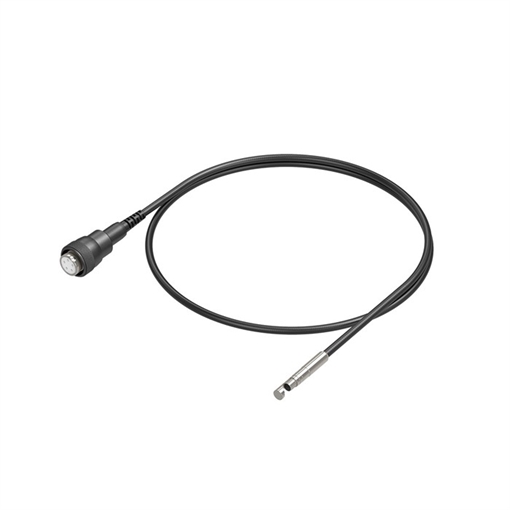

Teslong 45'' FLEXIBLE USB BORESCOPE NTG100

Technical Specs

• Model Number: NTG100
• Probe Type: Flexible steel fiber probe
• Diameter: 0.197 in (5.0 mm)
• Probe Length: 45 in (115 cm)
• Data Cable Length: 60 in (150 cm)
• Megapixel: 1.0 Megapixel
• Resolution: 1280x720 pixels
• Viewing Angle: 70°

Depth of Field of the camera WITHOUT side-view mirror

• 1.18 in to 3.94 in (30 mm to 100 mm)

Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror:

• With lock ring on: 0 in to 0.28 in (0 mm to 7 mm)
• Without lock ring: 0 in to 0.39 in (0 mm to 10 mm)

Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror:

• With lock ring on: 0 in to 0.08 in (0 mm to 2mm)
• Without lock ring: 0 in to 0.16 in (0 mm to 4 mm)

Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror:

• With lock ring on: 0 in to 0.08 in (0 mm to 2 mm)
• Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm)

Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror:

• With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm)
• Without lock ring: 0 in to 0.12 in (0 mm to 3 mm)

Caliber (depends on the size of the side-view mirror you use):

• 0.22 in (5 mm) Caliber and larger
• 0.28 in (7 mm) Caliber and larger
• 0.33 in (8.3 mm) Caliber and larger
• 0.47 in (12 mm) Caliber and larger
• LED Light: 6 Adjustable High-intensity LEDs
• Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529

What is in the Package?

• Borescope
• 3x 0.2 in (5 mm) Side-view Mirrors
• Aviation to USB-A Connector
• USB-C Adaptor
• Instructions and Manuals
• User Manual
• Safety Manual
