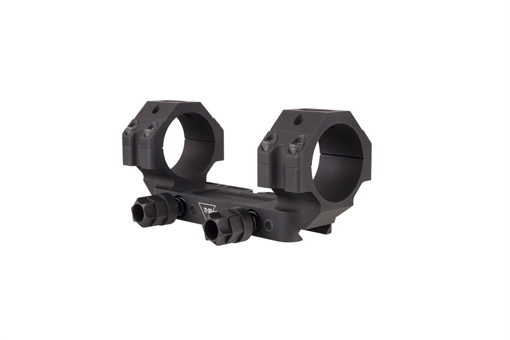

Trijicon Bolt Action Mount w/ Trijicon Q-LOC Tech 34mm 1.06 in Height AC22043

The Trijicon Bolt Action Mount w/ Q-LOC™ Technology features a 34mm / 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a Picatinny rail.

• Matte black anodized finish
• Made in the USA

Distance From Top of Mounting Rail to Optical Axis:

• 1.125" / 1.06"

NOTE:

• Fits Objective Lens up to 56mm / 42mm

Torque Spec (to rail):

• Spring Tension Only: 12-16 in. / lbs.
• Can be Tightened To: 44-66 in. / lbs.
• Torque Spec (Ring Caps): 14-16 in. / lbs.
