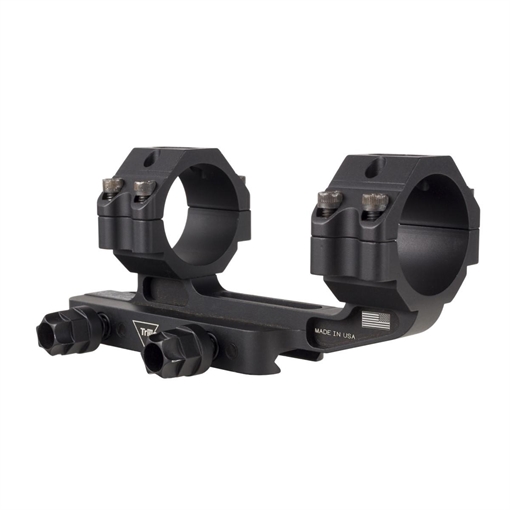

Trijicon Q-LOC, Quick Release, Cantilever Mount, 1.590" Height, Fits 34mm Optic Tube, Anodized Finish, Black AC22039

The Trijicon Cantilever Mount w/ Q-LOC™ Technology features a 34mm / 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

• Matte black anodized finish
• Made in the USA

Distance From Top of Mounting Rail to Optical Axis:

• 1.535" / 1.590"

NOTE:

Fits Objective lens up to 56mm

Torque Spec (to rail):

• Spring Tension Only: 12-16 in. / lbs.
• Can be Tightened To: 44-66 in. / lbs.
• Torque Spec (Ring Caps): 14-16 in. / lbs.
