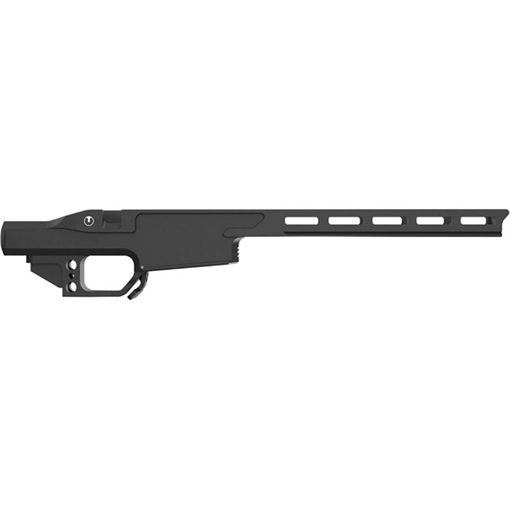

Ultradyne Usa UD5 CHASSIS 18.5'' FOR HOWA 1500 SA 14 M-LOK RH BLK ANODIZED UD20126

UD CHASSIS FOR HOWA 1500

The Ultradyne Chassis is crafted from a solid bar of 6061 T6 Aircraft Aluminum for exceptional strength and durability. The one-piece design weighs between 1.1 and 1.5 pounds, depending on the model. This makes it suitable for both hunting rifles that weigh as little as 6 pounds and long-range target rifles that weigh up to 16 pounds. When paired with the Ultradyne Adjustable Butt Stock, it is lighter than most factory stocks yet has the ability to add up to 5 pounds with optional weights.

The Ultradyne Chassis is packed with features including an adjustable magazine release lever, compatibility with AICS magazines, ability to work with any Mil-Spec butt stock, a built-in Arca rail, M-LOK slots on three sides, and Dynalock technology to ensure a secure fit. The action is held in place with V-channel bedding that can accommodate free-floated barrels up to 1.35 inches in diameter.

SPECIFICATIONS:

• 6061 T6 Aluminum
• Cerakote® Finish
• Stock Interface: Mil Spec
• Grip Interface: Mil Spec A2
• Magazine Interface: AICS
• 1.35” Max. Barrel Diameter

UD3 Short Action

• 17-20 oz depending on inlet
• 15.3” Overall Length, 6.5" Forend/Arca Length
• 8 M-LOK Slots

UD5 Short Action

• 19-22 oz depending on inlet
• 18.5” Overall Length, 9.5" Forend/Arca Length
• 14 M-LOK Slots
